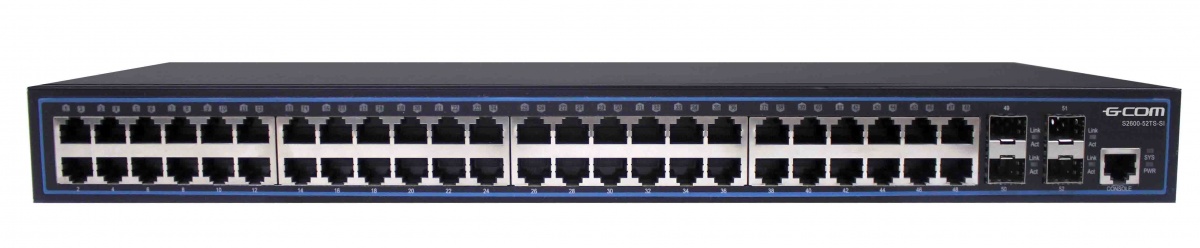

Коvутатор керований L2 GCOM S2600-52TS

Backplane capacity

72Gbps

Interface switching capacity

17.6Gbps

Forwarding capacity

13.1Mpps

Power consumption

≤45W

Dimensions (width x depth x height))

440mmx220mmx44mm

Weight (Full-loaded)

≤3.5kg

Power supply

AC: 100～240V, 50～60Hz        DC: -36V～-72V

Environmental requirements

Working temperature: -25°C～50°C

Storage temperature: -40°C～70°C

Relative humidity: 10%～90%, non-condensing

L2 features

MAC

16K MAC address

IP + MAC + port binding

ARP anti-attack

Aging time and add/remove static MAC

MAC Black Hole

Port MAC Limit

Disable MAC address learning on port or channel-group

VLAN

4K VLAN entries.

Port-based and MAC-based VLAN

PrivateVLAN

Port-isolation in a VLAN

Port QinQ and selective QinQ

1:1 and N:1 VLAN switching

Port

Bidirectional bandwidth control, configure entry/exit

Storm-control on port, configure broadcast/multicast/unknown unicast

Static and LACP, configure 14/30 groups and 8 members port each group

Port- mirroring of 1:1 or N:1

Ring

STP/RSTP/MSTP

Remote-loop-detect

Security features

User’s security

ARP anti-Flooding, configure ARP traffic safety threshold and inhibition ARP packet

ARP anti-Spoofing , configure ARP inner and outer MAC check and static ARP checklist and drop / flood action

IP Source Guard, auto-create

IP+MAC+port+VLAN binding table

IEEE 802.1x and AAA/Radius authentication

IP+MAC+port+VLAN binding manually

Port Isolation

Bind MAC address to port and MAC address filtration on port

Network security

User-based ARP abnormal traffic filtration

Auto-shutdown port in storm

Update user’s location through DHCP Option82 and PPPoE+

Port-based broadcast/multicast/unknown unicast suppression

L2-L4 ACL flow filtration

Device security

Anti-DOS attack

SSHv2 Secure Shell

SNMP v3 encryption

Telnet based on Security IP

Prevent unauthorized user

Service features

ACL

Activate 1K/460 standard and extended ACL at the same time

Port/VLAN/global-based ACL and Time Range-based ACL strategy

CAR and ACL in the dynamic AAA

QoS

4 /8 queues with different priorities on each interface, configure the algorithms of SP, WRR, and SP+WRR

Flow classification based on SMAC,DMAC,VLAN,SIP,DIP,IP protocol, port number and CoS

Traffic priority definition and packet re-direction

Multicast

1K L2 multicast groups

IGMPv1/v2/v3 Snooping

IGMP Filter/Fast leave/cross-VLAN duplication

MLDv2/MLDv2 Snooping

Reliability

Loop protection

EAPS and ERRP

Loopback-detection

Link protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

Device protection

Dual fault tolerance backup of host application and configuration file

provide 12V RPS redundant power supply interface, accept customization

Support to be configured with user-specified configuration

Strictly follow the relevant standards, and other mainstream manufacturers fully interoperability

Maintenance

Network maintenance

Port real-time, utilization and transmit/receive statistic based on CLI

LLDP

802.3ah Ethernet OAM

Syslog and RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device management

CLI, Console port, Telnet and WEB management

SNMPv1/v2/v3

RMON (Remote Monitoring)1,2,3,9 MIB

NTP

GN.LinkⅡ Server

NGBNView network management
